Fiber Optic Cable
A fiber-optic cable is made of glass or plastic and transmits signals in the form of light.
Properties of light
Ø Light travels in a straight line as long as it moves through a single uniform substance. If traveling through one substance suddenly enters another, ray changes its direction.
Bending of light ray
If
the angle of incidence(the angle the ray makes with the line perpendicular to
the interface between the two medium) is less than the critical angle the ray
refracts and move closer to the surface.
If
the angle of incidence is equal to the critical angle, the light bends along
the interface.
If
the angle of incidence is greater than the critical angle, the ray reflects and
travels again in the denser substance. Critical angle differs from one medium
to another medium.
Optical
fiber use reflection to guide light through a channel.
A Glass or plastic core is surrounded by a
cladding of less dense glass or plastic.

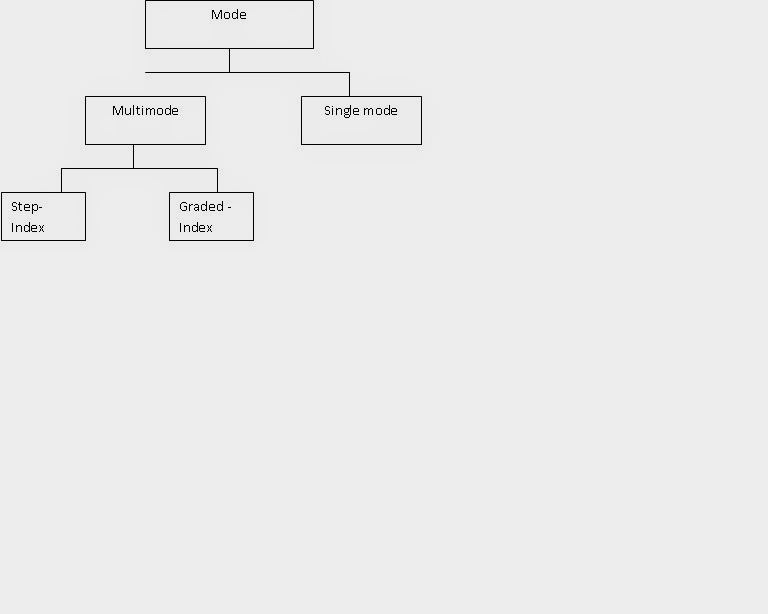

Propagation Modes
Multimode
In
the multiple mode, multiple light beams from a source move through the core in
different paths.
Ø
Multimode-Step-Index
fiber: The density of core remains constant from
the centre to the edge.
A ray of light moves through this constant
density in a straight line until it reaches the interface of the core and the
cladding. At the interface there is an abrupt change to a lower density that
changes the angle of the beam’s motion.
Ø
Multimode-
Graded -Index fiber: The density is varying. Density is highest
at the centre of the core and decreases gradually to its lowest at the edge.
Single
Mode
Single mode uses step-index fiber and a highly focused source of
light
that
limits beams to a small range of angles, all close to the horizontal.
The single mode fiber itself is manufactured with a much smaller
diameter
than that of multimedia fiber.
Connectors
Ø
Subscriber
channel (SC) connector
is used for cable TV.
Ø
Straight-tip
(ST) connector
is used for connecting cable to networking devices.
Advantages of Optical Fiber
Ø
Noise resistance
Ø
Less signal attenuation
Ø
Light weight
Disadvantages
Ø
Cost
Ø
Installation and maintenance
Ø
Unidirectional
Ø
Fragility (easily broken)
Unguided media
Unguided media transport electromagnetic waves without using a
physical conductor. This
type of communication is often referred to as wireless communication.
Signals are
normally broadcast through air and thus available to
anyone who has device
capable of receiving them.
Unguided signals can travel from the source to
destination in several ways:
Ø
Ground propagation – waves travel through lowest
portion on
atmosphere.
Ø
Sky propagation – High frequency waves radiate
upward into
ionosphere and reflected back to earth.
Ø
Line-of-sight propagation – Very high frequency signals
travel
in a straight line
Radio Waves
Electromagnetic
waves ranging in frequencies between 3 kHz and 1 GHz are normally called radio
waves.
Properties
Ø
Radio
waves are omnidirectional. When an antenna transmits radio waves, they are
propagated in all directions. This means that the sending and receiving
antennas do not have to be aligned.
Ø
A
sending antenna sends waves that can be received
by any receiving antenna.
Ø
Radio
waves, particularly those of low and medium
Disadvantages
Ø
The
omnidirectional property has a disadvantage, that the radio waves transmitted
by one antenna are susceptible to interference by another antenna that may send
signals using the same frequency or band.
Ø
As
Radio waves can penetrate through walls, we cannot isolate a communication to
just inside or outside a building.
Applications
Radio
waves are used for multicast communications, such as radio and television, and
paging systems.
Microwaves
Electromagnetic waves having
frequencies between 1 and 300 GHz are called microwaves.
Properties
Ø
Microwaves
are unidirectional.
Ø
Sending
and receiving antennas need to be aligned
Ø
Microwave
propagation is line-of-sight
Ø
Very
high-frequency microwaves cannot penetrate walls
Ø
Parabolic
Dish antenna focus all incoming waves into single point
Ø
Outgoing
transmissions are broadcast through a horn aimed at the dish.
Disadvantage
Ø If receivers are inside
buildings, they cannot receive these waves
Applications
Ø Microwaves are used for unicast
communication such as cellular telephones, satellite networks, and wireless
LANs.
Infrared
Ø Electromagnetic waves with
frequencies from 300 GHz to 400 THz are called infrared rays
Ø Infrared waves, having high frequencies,
cannot penetrate walls.
Applications
Ø Infrared signals can be used
for short-range communication
in a closed area using line-of-sight
propagation.
Channel Access on links
Multiple Access Techniques
Various
multiple access techniques are
Ø Frequency Division Multiple Access(FDMA)
Ø Time Division Multiple Access (TDMA)
Ø Code Division Multiple
Access(CDMA)
Frequency Division Multiple
Access
Ø In frequency-division multiple
access (FDMA), the available bandwidth is divided into frequency bands.
Ø Each station is allocated a
band to send its data.
Ø In this method when any one
frequency level is kept idle and another is used frequently leads to
inefficiency.
Time Division Multiple Access
Ø In time-division multiple
access (TDMA), the stations share the bandwidth of the channel in time.
Ø Each station is allocated a
time slot during which it can send data.
Ø The main problem with TDMA lies
in achieving synchronization between the different stations.
Each
station needs to know the beginning of its slot and the location of its slot
Code Division Multiple Access
Ø CDMA differs from FDMA because
only one channel occupies the entire bandwidth of the link.
Ø It differs from TDMA because all
stations can send data at the same time without timesharing.
Ø CDMA simply means communication
with different codes.
Ø CDMA is based on coding theory.
Each station is assigned a code, which is a sequence of numbers called chips.
Ø Chips will be added with the
original data and it can be transmitted through same medium.
